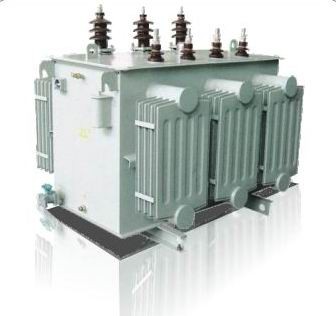

Oil-immersed Amorphous Alloy Core transformer

Previous Oil-immersed transformer(OIT) Product

Next Oil-immersed transformer(OIT) Product

Oil-immersed Amorphous Alloy Core transformer Product Details:


The core of amorphous core distribution transformer is amorphous alloy with soft magnetic material characteristic can further reduce the distribution system for loss and reduce air pollution. This new transformer compared with the conventional silicon steel, cut 80% of the no-load is efficient and energy-saving effect. Superscript reached the words advanced level.


Amorphous alloy core distribution transformer products adopt single or three-phase five-volume box core. Core molding frame clamping plates, foil around for the type of low voltage windings so low loss, the short circuit capacity. Advanced structural reasonable overall performance indicators have reached the words advanced level.

CTSS (China Transpowers Electric Co.,Limited) is renowned and appreciated by its reliable products performance and integrated services. Plenty of our products have been exported and applied in oversea markets, such as Australia, South Africa, West Africa, Middle East, Europe, South America, regarding power plant, substation, mineral and ore industries.


Ø  IEC-76 .1-1993 Power Transformers: general

Ø  IEC-60076 Power Transformers

Ø  JB/T3837-1996 Approaches for Editing Type of Transformer

Ø  GB1094.1.2-1996 Manufacturing Standard of Power Transformer

Ø  GB1094.3.5-2003 Manufacturing Standard of Power Transformer

Ø  GB/T 6451-2008 Technical Parameters and Requirements of the Three-phase Oil-immersed Power Transformer


Ø  Low no-loss

Ø  Low noise

Ø  Strong mechanical strength

Ø  Pretty outline and compact structure

Ø  100% guaranteed no leakage

Ø  No hauling

Ø  With innovation in safety

Ø  Reliability assured

Ø  Low maintenance

Ø  Fully tested and certified

Ø  Suits local conditions

Ø  Cost effective

Ø  Easy operation


Brief specification:

Ø  Voltage class: up to11kV

Ø  Capacity: 302500kVA

Ø  Short circuit impedance: 4-6%

Ø  No load Loss: 0.033~0.8kW

Ø  Load loss: 0.60~21.5kW


Typical specification:

Ø  Model: SH11-M-100kV

Ø  Rated voltage: 11kV(±5% or ±2×2.5%)

Ø  Rated Capacity:100kVA

Ø  Type: ONAN, 3Phase, OFTC, Distribution Transformer
